2026 PRODUCT CATALOG
Measure.
Display.
Control.
Patented display, control and power-monitoring modules for amplifier and car audio manufacturers.
OEM integration · FOB China · MOQ 500 pcs
ABOUT PHILOVATION
Amplifiers that talk
Philovation designs patented modules that measure, display and control: a main control core embedded at the design stage, round touch display and instrument modules, and a wired remote that reads true power in real time. Every product is built for OEM integration.
6
modules covering control, display, instrumentation and remote
4
patented core products: PSM-1, DCM-3, DCM-4, DPI-1
8
real-time parameters measured by DPI-1
5 m
cable on every remote unit · USB Type-C or 12-pin
PRODUCT RANGE
Six modules, one ecosystem
PSM-1 ★ PATENTED
Main Control Module
4-layer MCU board with USB Type-C, embedded in your amp. Pairs with DCM-1 or DCM-2.

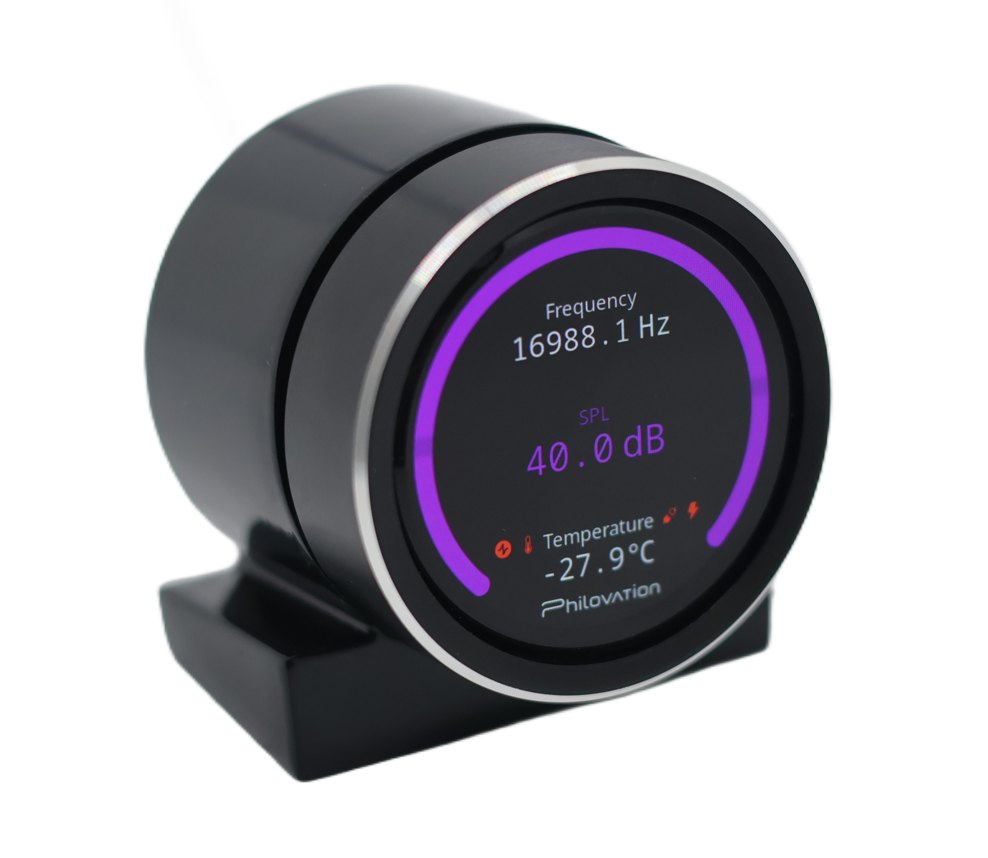

DCM-1
Display Module
1.5″ round touchscreen with rotary push knob and integrated driver.

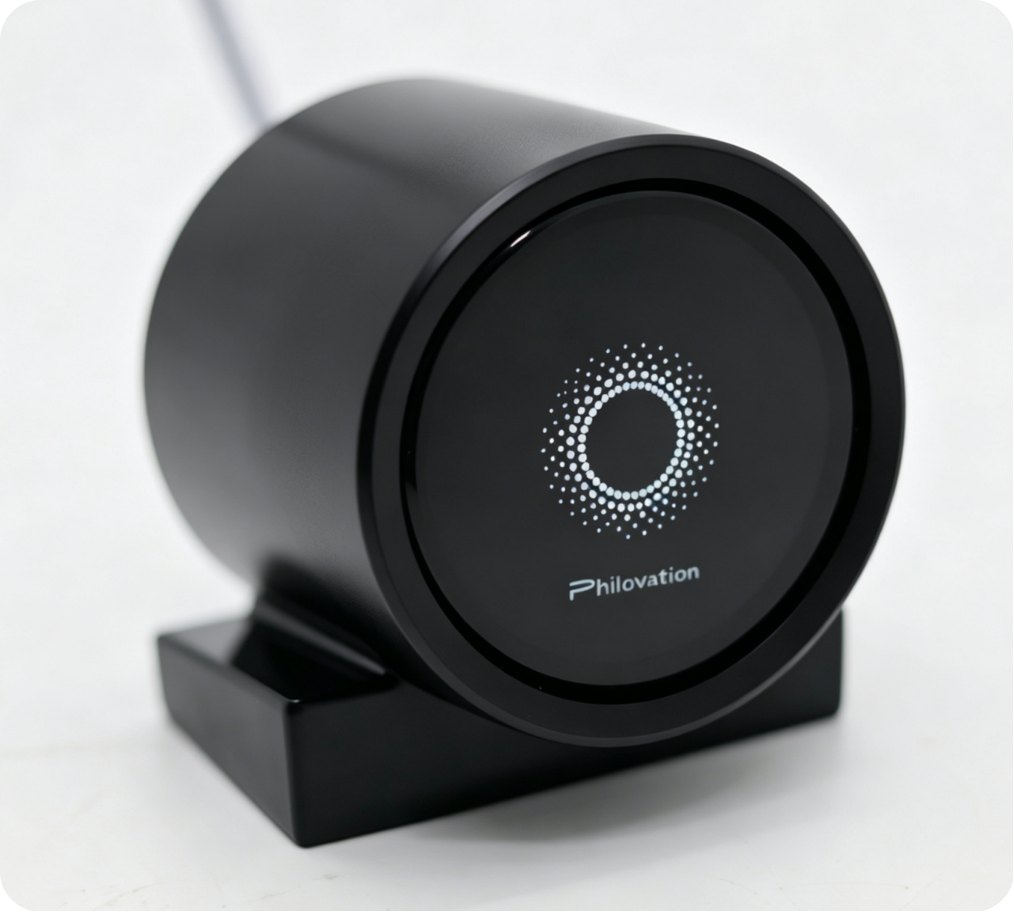

DCM-2
Display Module
1.5″ capacitive touchscreen with separate driver board. Compact, cost-effective.

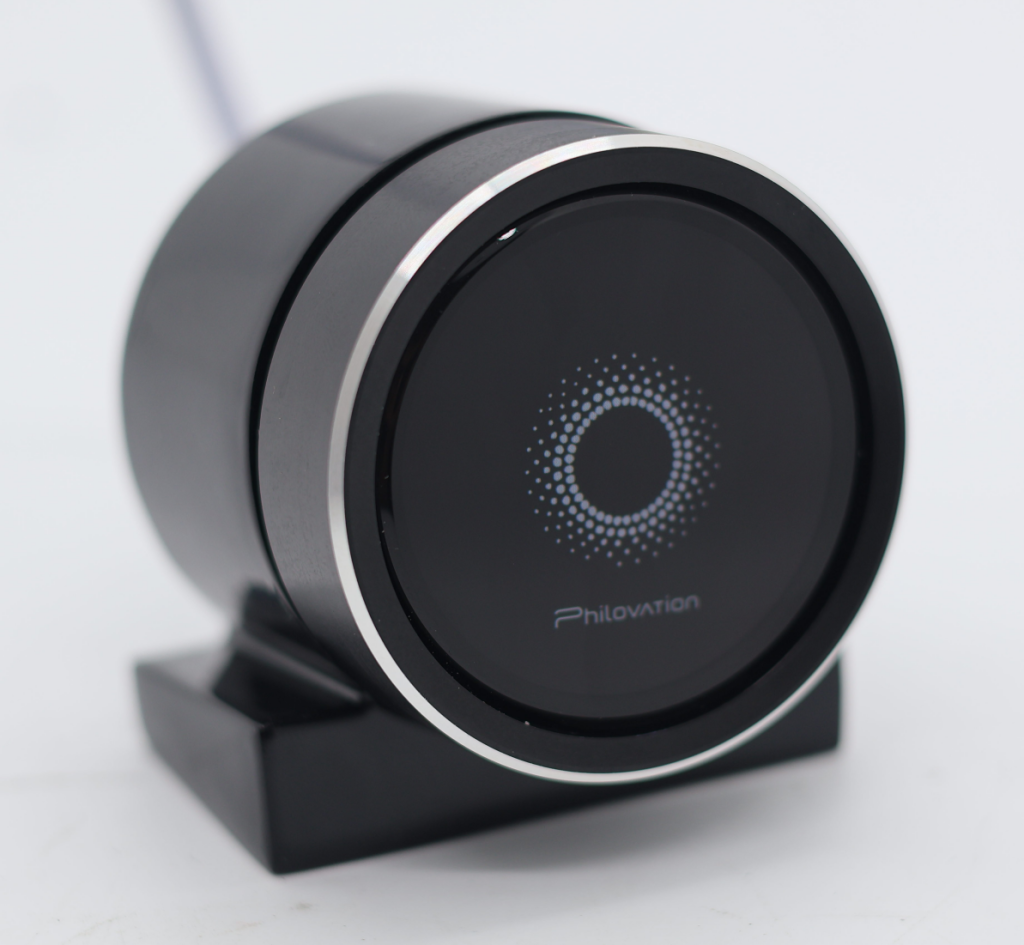

DCM-3 ★ PATENTED
Instrument Module
DCM-1 with integrated PSM-1B controller. A complete standalone instrument.
DCM-4 ★ PATENTED
Instrument Module
DCM-2 touchscreen with integrated PSM-1B controller. Touch-only instrument.
DPI-1 ★ PATENTED
Wired Remote Module
Desktop wired remote. OLED shows power, impedance, voltage, current, temperature.

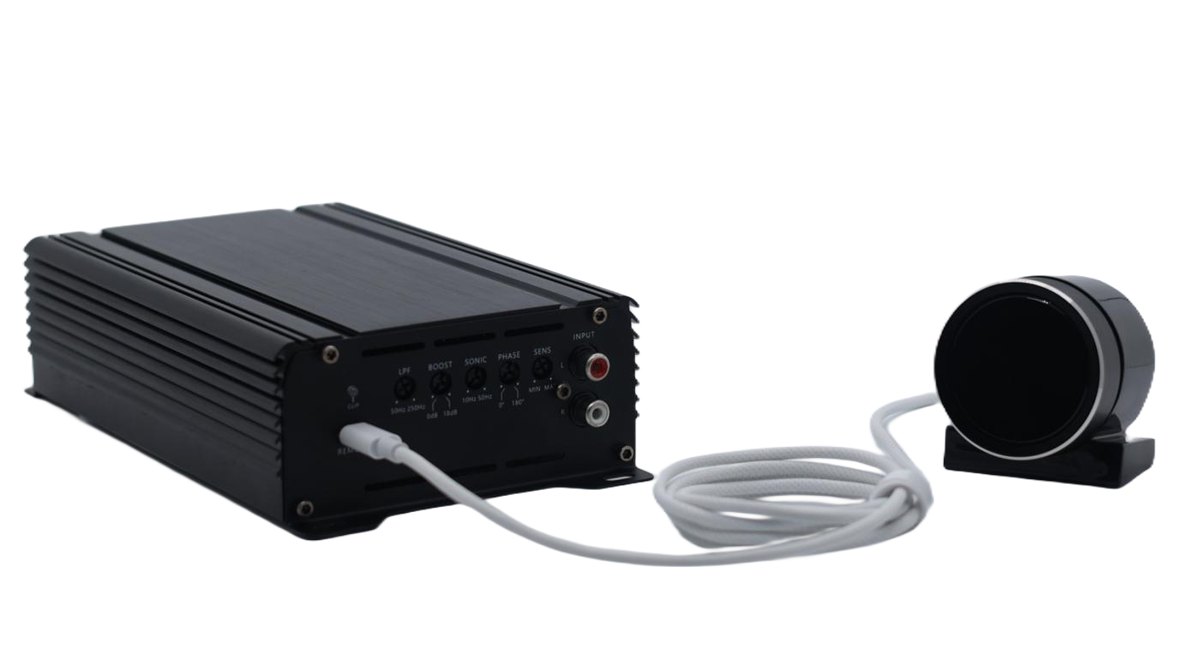

SYSTEM ARCHITECTURE
Built into the amp, visible from the driver's seat
PSM-1 inside
Your Amplifier
PSM-1 is embedded at the design stage to sense audio, speaker output, supply voltage and temperature.
USB-C · 5 m | 12-pin · 5 m
Display · Instrument
DCM-1 / 2 / 3 / 4
1.5″ round touch display or standalone instrument for dash or panel mounting.
Wired remote
DPI-1
OLED readout of power, impedance and temperature, with a metal adjustment knob.
Which DCM fits your design?
| Feature | DCM-1 | DCM-2 | DCM-3 | DCM-4 |
|---|---|---|---|---|
| 1.5" OLCD touchscreen | ● | ● | ● | ● |
| Rotary push knob | ● | — | ● | — |
| Integrated PSM-1B controller | — | — | ● | ● |
| Metal standoff mounting kit | ● | — | ● | — |
| 5 m dual Type-C data cable | ● | ● | ● | ● |
| Best for | Display with knob | Basic touch display | Standalone instrument with knob | Touch-only standalone instrument |

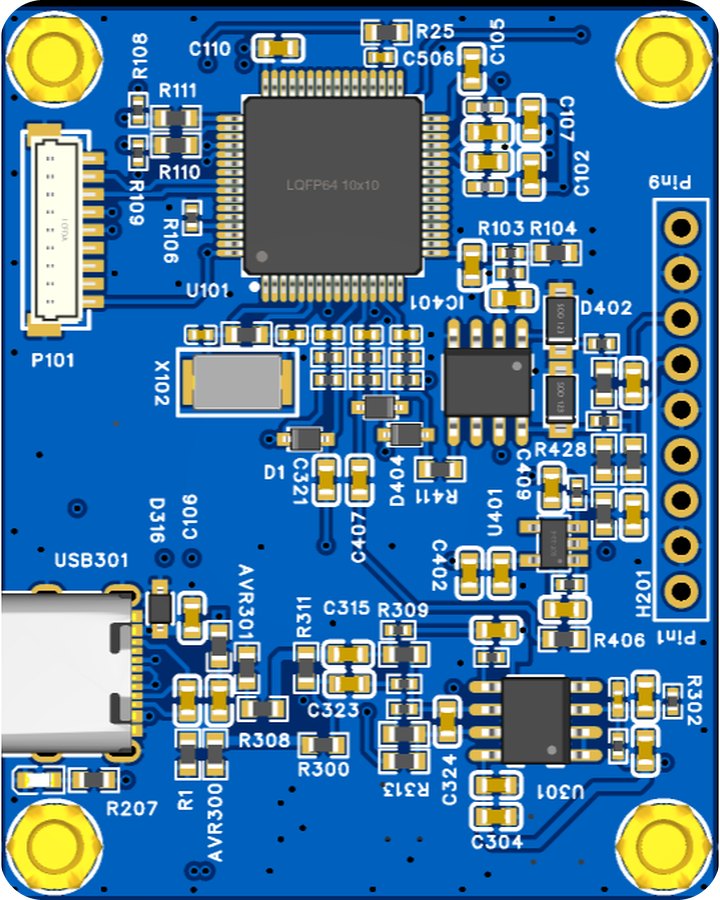

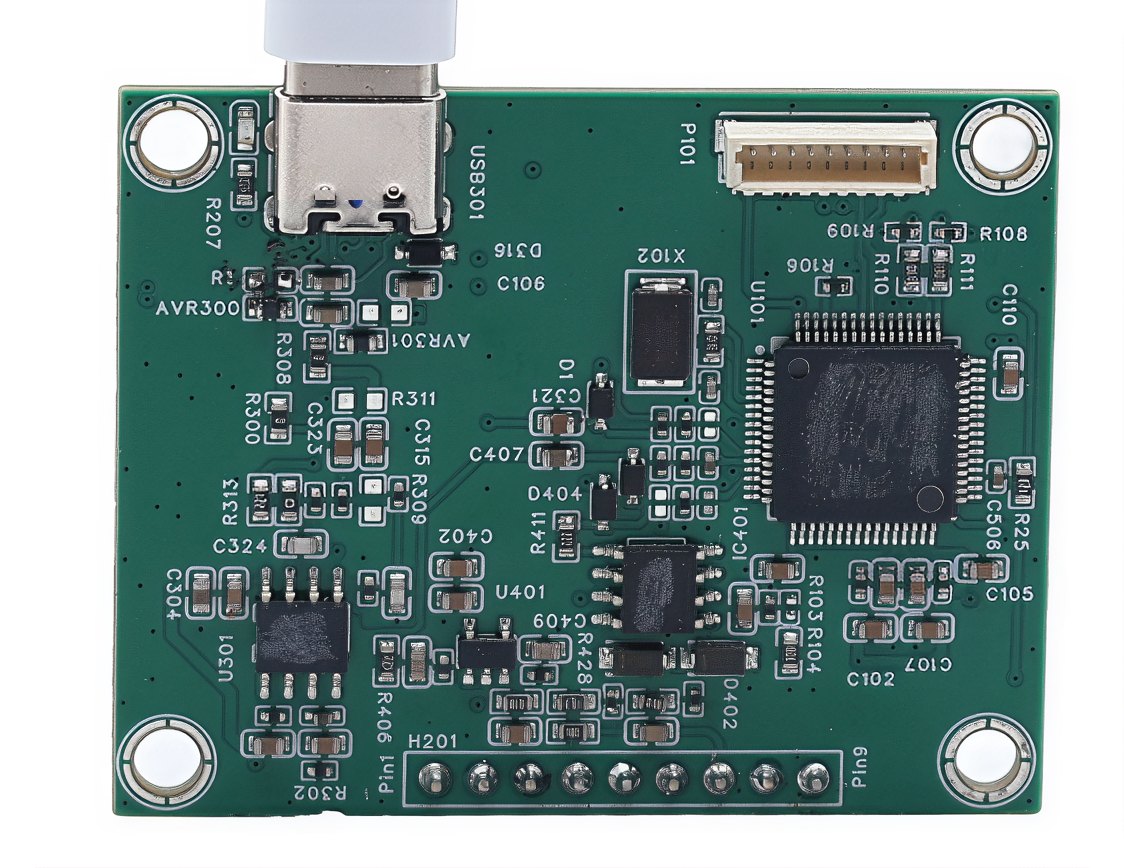

Main Control Core Patented ★ PATENTED
PSM-1 · Reference pin definitions
A 4-layer MCU board with onboard USB Type-C, embedded directly in your amplifier design. Use with DCM-1 or DCM-2.
Reference pin definitions
| Pin | Signal | Direction | Description |
|---|---|---|---|
| 1 | AUX_IN | Input | AUX audio input, 0–1.5 Vpp |
| 2 | GND | Ground | System ground |
| 3 | SPK_AMP | Input | Speaker signal sense (AMP side) |
| 4 | SPK_OUT | Input | SPK output sense, 0–100 V |
| 5 | GND | Ground | System ground |
| 6 | V_SENSE | Input | Supply voltage sense, 8–17 V |
| 7 | AMP_NTC | Input | Amplifier temperature sense |
| 8 | GND | Ground | System ground |
| 9 | POWER | Power in | Device power input |
Reference only. Final pin numbers, connector type and signal directions follow the final hardware release.

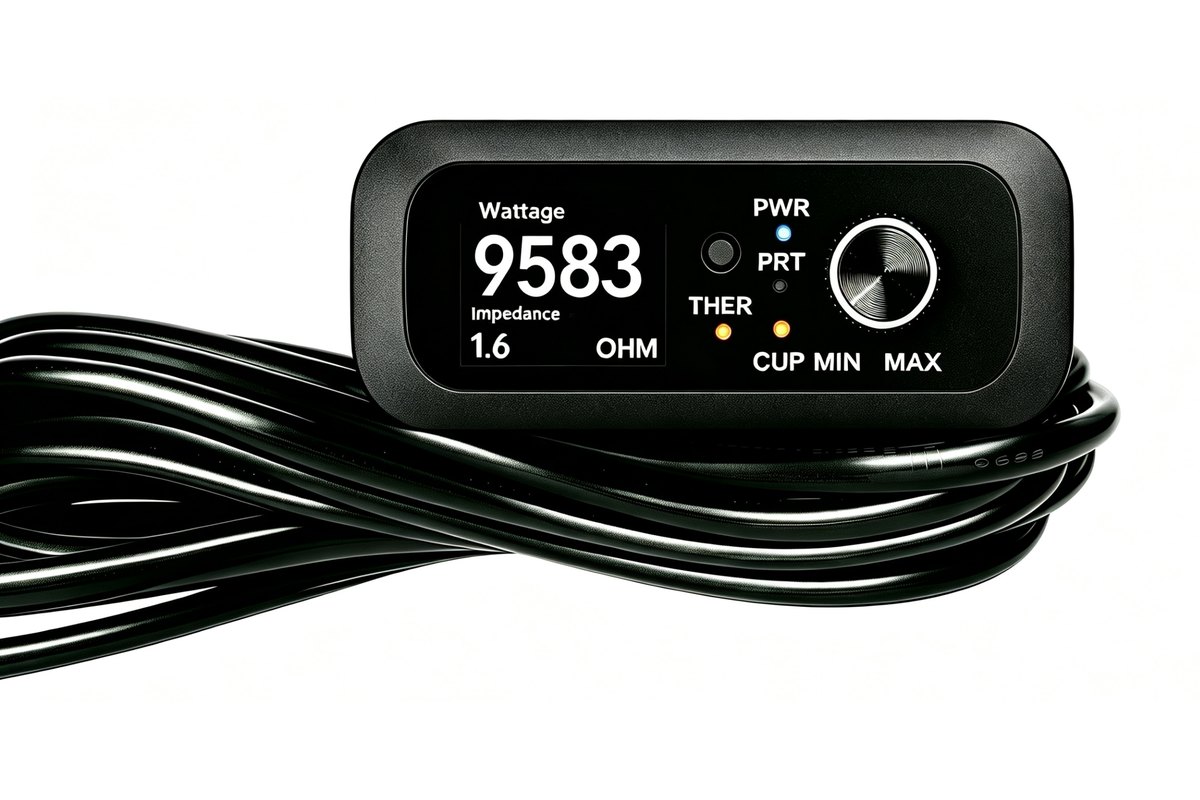

Wired Remote Module ★ PATENTED
DPI-1 Wired Remote
Real-time OLED readout of power, impedance, voltage, current and temperature, for remote adjustment and monitoring of car amplifiers and audio systems.
01
True Output Power
Watts (W)
02
Apparent Power
Volt-amperes (VA)
03
Power Factor
V/I phase difference under reactive load
04
AC Voltage
Volts (V)
05
AC Current
Amperes (A)
06
Peak Mode
Maximum amplifier output power
07
DC Voltage
Supply voltage (V)
08
Amp Temperature
Internal amplifier temperature
In the box: 1 × DPI-1 module · 1 × 5 m 12-pin phone cable
PARTNER WITH PHILOVATION
Built in from day one
§
Patented technology
PSM-1, DCM-3, DCM-4 and DPI-1 are patented and developed in-house.
⊕
Embedded at design stage
PSM-1 drops into your layout with standardized interfaces and mounting holes.
⚙
Outsourced assembly
Modules arrive assembled and ready to install.
▣
Custom anti-static packaging
Blister tray + outer carton, customizable on request.
